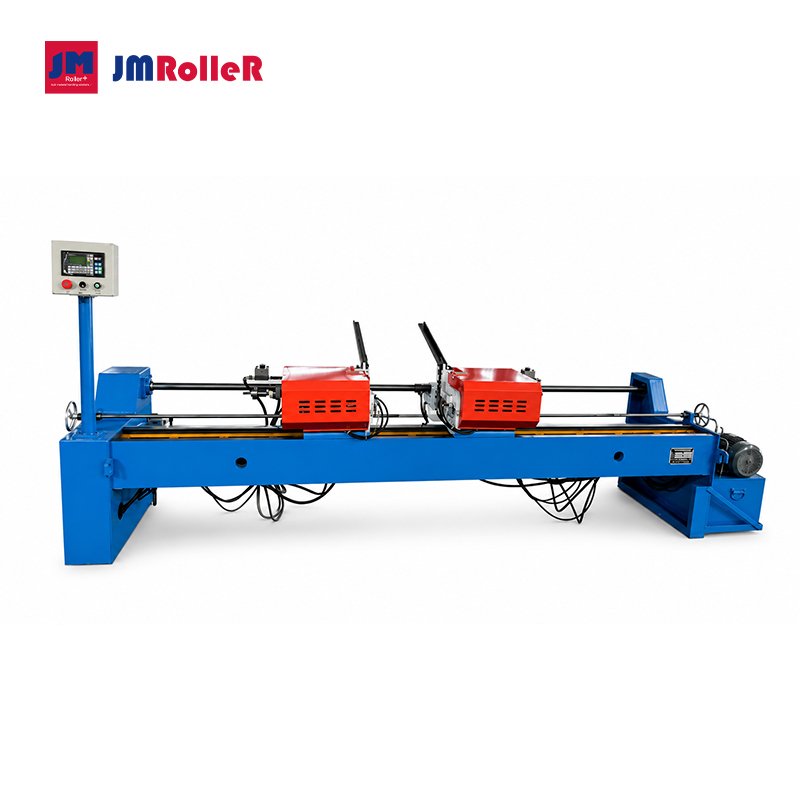

Automatic Double-End Facing & Chamfering Machine
A PLC-controlled solution for facing, chamfering, deburring and center-hole drilling on both ends of conveyor roller shafts. Simultaneous dual-end processing delivers fast, consistent results for batch production.
Four Operations in One Automated Cycle
The TPD-2040 performs end facing, chamfering, deburring and center-hole drilling at both shaft ends, helping improve accuracy while reducing manual handling.
Simultaneous Dual-End Work
Both shaft ends are processed at the same time to shorten the cycle and keep finished lengths consistent.
±0.1 mm Accuracy
Stable alignment between the workpiece and cutter centerlines supports repeatable shaft-end dimensions.
Automatic Sequence
PLC control coordinates feeding, clamping, tool approach, machining and return for efficient batch processing.
Complete Shaft-End Preparation
- Face both shaft ends to the required length.
- Machine chamfers for easier assembly.
- Remove burrs from shaft edges.
- Drill center holes at both ends where required.
Fast Adjustment and Stable Alignment
The cutter head is specially designed for standardized inserts and convenient adjustment. Accurate, fixed centerline alignment between the workpiece and cutter assemblies supports reliable and repeatable processing.
The machine is suitable for shaft products requiring rapid, accurate end preparation in continuous production.
Main Specifications
| Model | TPD-2040 |
|---|---|
| Processing diameter | Ø20–Ø40 mm |
| Processing length | 260–2300 mm |
| Processing accuracy | ±0.1 mm |
| Working pressure | 4–8 MPa |
| Control method | PLC control |
Standard Configuration
| Hydraulic station | Shandong Kanghao |
|---|---|
| PLC | Delta, Taiwan |
| Relay | CHINT |
| Proximity switch | Shanghai brand |
Specifications and component brands may be adjusted according to the final machine configuration. Please confirm shaft dimensions, required operations and target output before ordering.
Tell Us Your Shaft-End Processing Requirements
Share your shaft diameter, length range, drawings and required production rate. JM Roller will recommend a suitable machine configuration.
